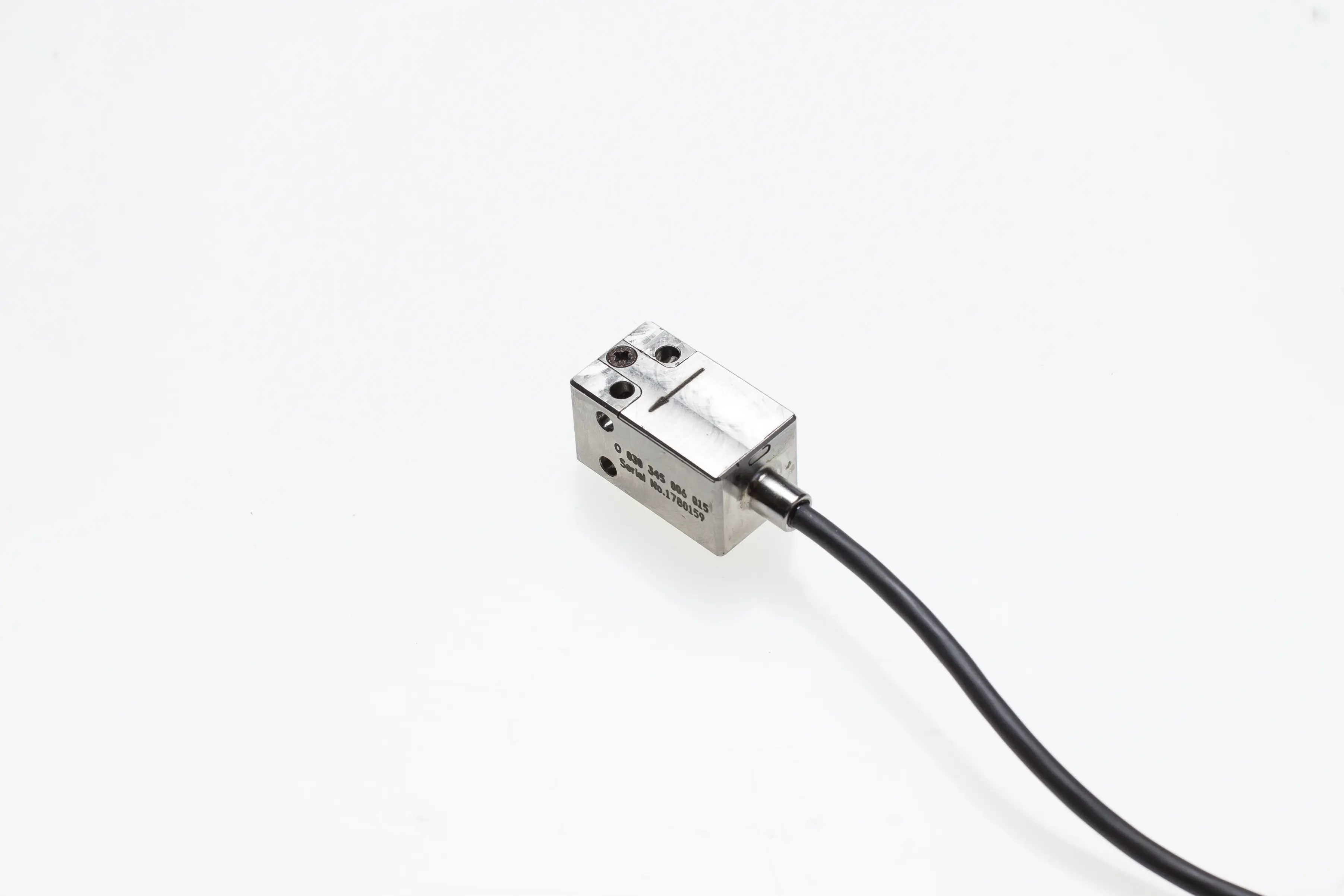

Single-Axis Accelerometer
Accelerometers are available to measure up to three axes in a single, robust package. The sensing element is a ±50g micro machined MEMS device. An internal amplifier provides an output between 0 and 5 volts.
Documents
Electrical Performance
Supply Voltage | 8 to 16V unregulated |
Range: | ±40g |
Output voltage (per axis): | 0.5 ±0.1V Acceleration =-40g |
2.5 ±0.1V Acceleration =0 | |
4.5 ±0.1V Acceleration =+40g | |
Sensitivity: | 66.6mV/g |
Cross axis sensitivity: | ±3.5% |
Thermal sensitivity drift: | ±2.5% |
Frequency response: | -3dB at 200Hz, 8 pole Butterworth filter |
Output impedance: | 50Ω |
Current Consumption: | <10mA |
Offset drift | ±0.65g typical |
±1.00g max |
